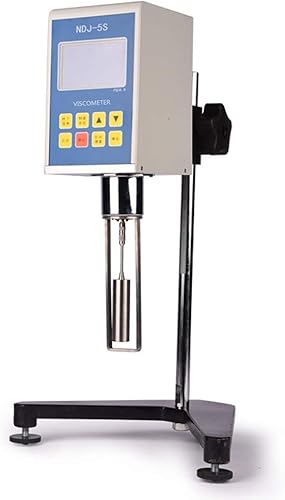

Digital Rotary Viscometer for Accurate Viscosity Measurement, LCD Display with 4 Rotors, for Testing Paints, Adhesives, Cosmetics, and Greases NDJ-5S

Lo más importante

Instrumentación de análisis de sustancias de la marca NYANS

• Marca: NYANS
• Categoría: Instrumentación de análisis de sustancias

Preguntas resueltas

The Digital Rotational Viscometer is a high-precision rotary viscosity viscometer designed for testing paints and other fluids.Compared with the same instrument, this one has the merit of high measure accuracy，stabled in rotate speed, wide working voltage (available in 100V-220V, 50Hz-60Hz) and so on. It is very convenient for users to choose the rotor and rotor velocity of the testing liquid correctly, because of the function ofmeasured value occupies full range.Specifications:- Model: NDJ-5S/NDJ-8S/NDJ-9S- Rotor Specifications: Standard 1-4 rotors, with optional 0 rotors for NDJ-8S/9S models capable of measuring low viscosity down to 0.1mPa.s- Rotor Speed: 6, 12, 30, 60 rpm- Measurement Accuracy: ±3% (Newtonian liquid)- Working Environment: Temperature 5°C-35°C, relative humidity not greater than 80%, no strong electromagnetic interference, no strong vibration- Dimensions: 95*130*155mm (excluding the base)- Net Weight: 2kg (excluding the base)Features:1. High measurement sensitivity ensures reliable results. Its elegant design adds convenience to usage.2. For determining the absolute viscosity of Newtonian liquids, suitable for various substances including greases, oil paints, and plastics.3. Equipped with four spindles (Rotor Size No.1, 2, 3, and 4) for versatile testing options.Packing List:- Host x1- No.1-4 Rotor x1- English Manual x1【After Sales Service】 If you have any questions or suggestions about our products, please send us an email for feedback, we will reply you within 24 hours, and you will get friendly after-sales service.

【Advanced Working Mechanism】NDJ Series Digital Viscometer (NDJ-5S-8S-9S) is a smart instrument，depending on the technology of A 16-bit high-performance single chip, which has totally changed the previous rotor method. Stepper motor runs accurately and stably as the setting speed procedure.And then torque sensor will drive rotor rotation in a constant speed. 【Precision Viscosity Measurement】This rotational viscometer accurately determines the viscosity and absolute viscosity of liquids, offering reliable data for quality control and research purposes.When rotor suffers viscous resistance in the tested liquid, the viscosity of the tested liquid will show on the screen by testing and handling. 【Wide Measuring Range】Features models with varying capabilities, from 10-100,000 mPa.s to 10-6 million mPa.s, ensuring versatility across different viscosity testing needs with an accuracy of ±3% for Newtonian liquids. 【Multiple Rotor Options】Comes with four different rotors, allowing users to select the most appropriate one based on the viscosity range of the liquid being tested, enhancing measurement accuracy and efficiency. 【Broad Application Spectrum】The Digital Rotary Viscometer is suitable for use in various industries including oils, paints, coatings, and more, as well as in scientific research, making it a versatile tool for professionals in multiple fields.
