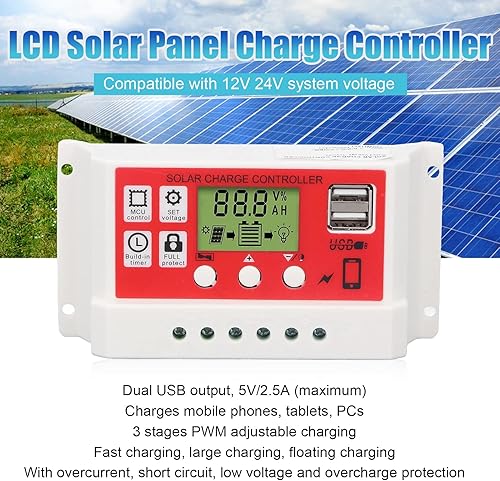

Solar Controller, Solar Controller LCD Display 3 Level PWM Lithium Battery Photovoltaic Regulator 12V24V, Energy Controllers (20A)

Ver Productos

Descripción
Specification:Item Type: Solar ControllerSupported Battery Type: B1: Acid battery 12V/24V (automatic identification)B2: Lithium ion battery (lithium battery) 3 strings of 3.7V=11.1VB3: LiFePO₄ battery 4 strings of 3.2V=12.8VSystem Voltage: 12V/24V automatic adaptationMaximum PV Voltage: Up to 23V at 12V; up to 46V at 24V Cut off Voltage: 14.4V(B1) 12.6V(B2) 14.6V(B3)Discharge Cut off Voltage: 10.7V(B1) 9V(B2) 10V(B3)Discharge Recovery Voltage: 12.6V((B1) 10.5V(B2) 12V(B3)Light Control Turn on Threshold: Photovoltaic Panel 8VLight Control Turn off Threshold: Photovoltaic Panel 8VUSB Output: 2 way USB output, 5V/2.5A (maximum)Standby Current: Working Temperature: -35~+60℃Package List:1 x Solar Controller1 x English User ManualNote:No need to reset when the battery runs out, because it remembers various parameters set by the user
Características
MAIN PURPOSE: Helps you automatically manage solar panel and battery operation with built in industrial microcontroller, compatible with 12V 24V system voltage. MAIN PURPOSE: Helps you automatically manage solar panel and battery operation with built in industrial microcontroller, compatible with 12V 24V system voltage. 3 LEVEL PWM CHARGING: Adopt fast charging, large charging and floating charging 3 phase PWM adjustment charging, to achieve efficient and intelligent charging. FUNCTIONS & FEATURES: With overcurrent, short circuit, reverse connection, low voltage and overcharge protection, safe operation. Adopt fast charging, large charging and floating charging 3 phase PWM adjustment charging, to achieve efficient and intelligent charging. DUAL USB OUTPUT: 3 levels PWM charging management with dual USB interface outputs, 5V/2.5A (maximum), which can mobile phones, tablets, PCs.
El número de Modelo (ItemModelNumber)
Fafeicyugvn2eswx5-12
Peso
1.00 Pounds
Dimensiones
5,12 x 3,15 x 1,57 pulgadas
Fabricante es Fafeicy
Destacados
MAIN PURPOSE: Helps you automatically manage solar panel and battery operation with built in industrial microcontroller, compatible with 12V 24V system voltage., MAIN PURPOSE: Helps you automatically manage solar panel and battery operation with built in industrial microcontroller, compatible with 12V 24V system voltage., 3 LEVEL PWM CHARGING: Adopt fast charging, large charging and floating charging 3 phase PWM adjustment charging, to achieve efficient and intelligent charging., FUNCTIONS & FEATURES: With overcurrent, short circuit, reverse connection, low voltage and overcharge protection, safe operation. Adopt fast charging, large charging and floating charging 3 phase PWM adjustment charging, to achieve efficient and intelligent charging., DUAL USB OUTPUT: 3 levels PWM charging management with dual USB interface outputs, 5V/2.5A (maximum), which can mobile phones, tablets, PCs.
El País de Origen (COO, siglas en inglés) o fabricación del producto Solar Controller, Solar Controller LCD Display 3 Level PWM Lithium Battery Photovoltaic Regulator 12V24V, Energy Controllers (20A) es China.
