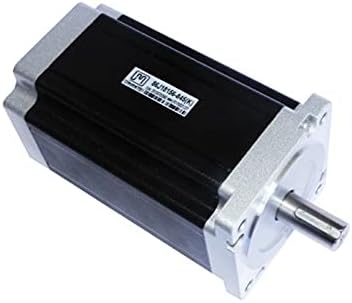

34 2phase 12N.m 1699ozf.in stepper Motor 86mm frame 15.875mm shaft 86J18156-845 JMC

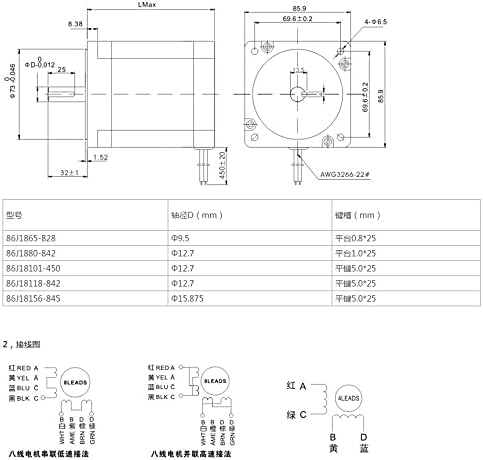

34 2phase 12N.m 1699ozf.in stepper Motor 86mm frame 15.875mm shaft 86J18156-845 JMC 34 stepper motor 2 phase hybrid type Low noise Operate smoothly High Torque Good accelerate function Typical applications3D Printer, CNC, Cutting machine, embroidery machineSpecifications:Model Step Angle Holding torque Current Phase Resistance phase Inductance phase Detent Torque Rotor Inertia Insulation Class Lead Wire Numbers Weight Length Shaft (deg) (N.m) (A) (ohms) (m H) (g cm) (g-cm²) (kg) (mm) (mm) 86J1865-828 34 1.8 3.5 2.8 0.24 1.7 800 950 B 8 2 65 9.5 86J1880-842 34 1.8 4.5 4.2 0.58 4.0 1300 1400 B 8 2.3 80 12.7 86J18101-450 34 1.8 6.0 5.0 0.58 4.2 1600 2300 B 4 3.25 101 12.7 86J18118-842 34 1.8 8.5 4.2 0.56 3.0 2500 2700 B 8 3.8 118 12.7 86J18156-845 34 1.8 12 4.5 0.82 5.2 4000 4000 B 8 5.4 156 15.875 Item specifics:Current / phase: 4.5AHolding torque: 12N.mStep angle(degrees): 1.8Phase: 2Model number: 86J18156-845Type: HYBRIDCertification: CCC,ce
