AmScope sm-3tx Professional trinocular zoom microscopio, WH10X Oculares estéreo, 3,5x -45X Zoom de Ampliación, 0.7x -4.5X lente, iluminación

Descripción

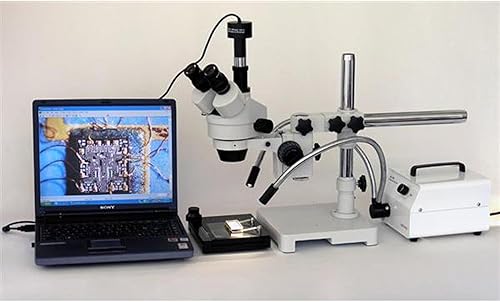

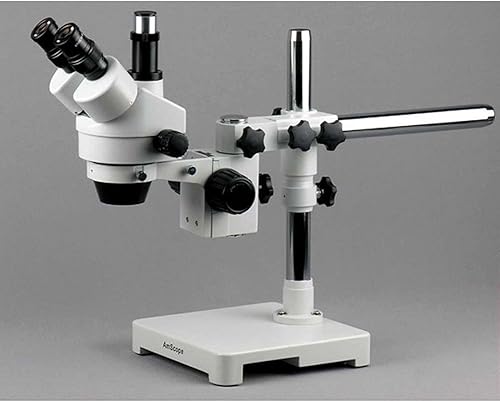

The AmScope SM-3TX professional stereo zoom microscope has a pair of 10x super-widefield high-eyepoint eyepieces, a 0.7x-4.5x zoom objective, a 0.5x Barlow lens, and a single-arm boom stand. The microscope has an overall magnification range of 3.5x-45x. The trinocular viewing head has an interpupillary range of 55 to 75mm, a 45-degree inclination to reduce eye and neck strain, and 360-degree rotation to enable sharing. The vertical trinocular port can be used as a C-Mount or 23mm photo port (camera sold separately). The WH10x20mm super-widefield high-eyepoint eyepieces combine with the 0.7x-4.5x zoom objective to provide continuous zoom magnification and a longer working distance for inspecting large-scale specimens that require handling or repair. The microscope comes with with a 0.5x Barlow lens that can be added to the objective to decrease the magnification range. A Barlow lens with a magnification of less than 1.0 reduces magnification and increases the working distance. High-eyepoint eyepieces ease viewing for users who wear glasses, and dioptric adjustment accommodates individual eye-strength differences. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected. Ambient lighting illuminates the specimen, eliminating the need for power or batteries. The microscope has a 17″ pillar that has an 8″ vertical working distance. The 16″ single-arm boom has a 24″ overall length. Bilateral focus eases use for left- and right-handed users. The microscope head can be rotated on the X- and Y-axes. The solid cast-steel base is 1-3/4 x 9 x 9 inches (H x W x D, where H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back).SpecificationsHeadTrinocularMagnification range3.5x-45xZoom objective power0.7x-4.5xEyepieces (DIN, 30mm)WH10x20mm high-eyepointTrinocular portC-Mount or 23mmField of view2-1/2″Optical working distanceUp to 8″Microscope standSingle-arm boom standHead movementX- and Y-axesIllumination typeN/ALight sourceAmbientPowerN/AMicroscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.United Scope manufactures microscopy equipment and accessories under the brand name AmScope. The company, founded in 1996, is headquartered in Irvine, CA.What’s in the Box?AmScope SM-3TX stereo zoom microscope with single-arm boom standWH10x20mm eyepieces, 30mm, one pair0.7x-4.5x zoom objective0.5x Barlow lensFocus rackEye guards, one pairInstructions
Características
Microscopio estéreo profesional con soporte boom tiene larga distancia de trabajo para permitir a los usuarios realizar trabajos o manipular artículos de gran tamaño, incluyendo tableros de circuito y aparatos dentales Trinocular cabeza con 2 unidades de visualización de 10 x oculares super-widefield fija, ajustable distancia interpupilar, de 45 grados inclinación vertical para reducir la tensión en cuello y ojos, y la capacidad de rotación de 360 grados para permitir a compartir Zoom 0,7 x -4,5 X lente proporciona ampliación de zoom continuo y más longitud focal para inspeccionar especímenes a gran escala, y una lente Barlow 0,5 x amplía la distancia de trabajo Iluminación ambiental ilumina el espécimen, eliminando la necesidad de poder o pilas Único brazo con 8″ vertical Distancia de trabajo y 16″ brazo ajustable permite a los usuarios ajustar el microscopio en la X- y y-axes
El número de Modelo (ItemModelNumber)
SM-3TX
Peso
65.00 Libras
Dimensiones
21.65 x 15.75 x 11.02 pulgadas
Fabricante es United Scope LLC.
Destacados
Microscopio estéreo profesional con soporte boom tiene larga distancia de trabajo para permitir a los usuarios realizar trabajos o manipular artículos de gran tamaño, incluyendo tableros de circuito y aparatos dentales, Trinocular cabeza con 2 unidades de visualización de 10 x oculares super-widefield fija, ajustable distancia interpupilar, de 45 grados inclinación vertical para reducir la tensión en cuello y ojos, y la capacidad de rotación de 360 grados para permitir a compartir, Zoom 0,7 x -4,5 X lente proporciona ampliación de zoom continuo y más longitud focal para inspeccionar especímenes a gran escala, y una lente Barlow 0,5 x amplía la distancia de trabajo, Iluminación ambiental ilumina el espécimen, eliminando la necesidad de poder o pilas, Único brazo con 8″ vertical Distancia de trabajo y 16″ brazo ajustable permite a los usuarios ajustar el microscopio en la X- y y-axes
