FrSky TD SR12 Receiver 2.4Ghz 900Mhz Long Range Telemetry ADV Stabilizer Function

Descripción
The Tandem (TD) dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means TD receivers provide not only low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.
Características

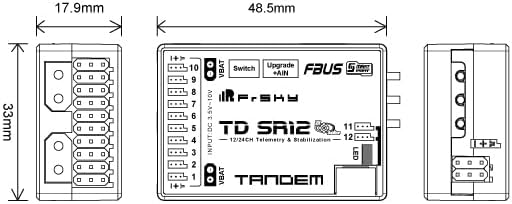

Simultaneous Working Dual-Band (900M/2.4G) TD Mode Dual Power Balancing Consumption Built-in Advanced Stabilization Functions Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.) Basic Black-Box Data Record Function Built-in Power Switch Function | Match with Different External Switches (Optional) 4ms Race Mode with Telemetry Long Control Range (Range varies based on the RF Power settings.) 12 Configurable Channel Ports – CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.) – CP2-12: PWM / SBUS Out / FBUS / S.Port FBUS / S.Port SBUS Out Port (Supports 16CH / 24CH mode) SBUS In Port (Supports Signal Redundancy) Over-The-Air (OTA) FW Update Frequency: 900MHz & 2.4GHz Dimension: 48.5*33*17.9mm (L*W*H) Weight: 23g Operating Voltage: 3.5-10V (Recommend 2S Li Batteries) Operating Current: ≤170mA Continuous Current: ≤20A (power the device) | Instaneous Current: ≤40A (power the device) Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10) Compatibility: Tandem series radio & TD protocol capable RF module Dual XT30 Power Input Connector Triple Antenna Design (2×2.4G & 1×900M antennas)
Peso
14.00 Pounds
Dimensiones
3 x 3 x 3 pulgadas
Fabricante es FrSky
Destacados
Simultaneous Working Dual-Band (900M/2.4G) TD Mode Dual Power Balancing Consumption Built-in Advanced Stabilization Functions, Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.) Basic Black-Box Data Record Function Built-in Power Switch Function | Match with Different External Switches (Optional), 4ms Race Mode with Telemetry Long Control Range (Range varies based on the RF Power settings.) 12 Configurable Channel Ports – CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.) – CP2-12: PWM / SBUS Out / FBUS / S.Port, FBUS / S.Port SBUS Out Port (Supports 16CH / 24CH mode) SBUS In Port (Supports Signal Redundancy) Over-The-Air (OTA) FW Update, Frequency: 900MHz & 2.4GHz Dimension: 48.5*33*17.9mm (L*W*H) Weight: 23g Operating Voltage: 3.5-10V (Recommend 2S Li Batteries), Operating Current: ≤170mA Continuous Current: ≤20A (power the device) | Instaneous Current: ≤40A (power the device) Voltage Measurement Range via AIN (External device): 0-35V (Battery Voltage Divider Ratio: 1:10), Compatibility: Tandem series radio & TD protocol capable RF module Dual XT30 Power Input Connector Triple Antenna Design (2×2.4G & 1×900M antennas)
El País de Origen (COO, siglas en inglés) o fabricación del producto FrSky TD SR12 Receiver 2.4Ghz 900Mhz Long Range Telemetry ADV Stabilizer Function es China.
