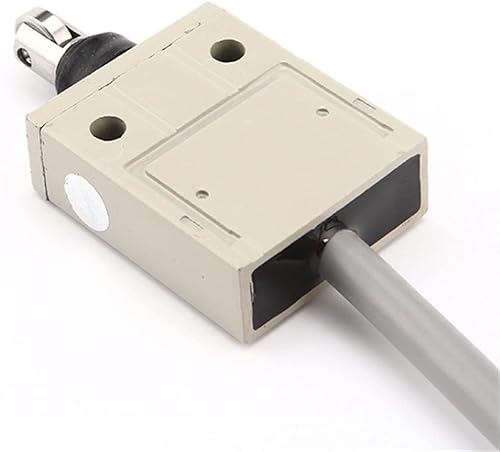

HEPUP TZ-3113 XTZ-3113 IP67 4Wire Roller Lever Plunger Limit Switch SPDT NO+NC Copper Wire 3 Meter

Precio y disponibilidad de HEPUP TZ-3113 XTZ-3113 IP67 4Wire Roller Lever Plunger Limit Switch SPDT NO+NC Copper Wire 3 Meter

$ 381.460,45

$ 448.777

0 % de interés sin costos adicionales en 3 cuotas de $ 127.153 , pagando con Addi. Obtén tu cupo

🚚

Envío gratis a todo Colombia

Disponible en todos nuestros productos, sin costos ocultos ni mínimo de compra.

Producto agotado temporalmente.

Tiempo de entrega: Entrega internacional estimada de 9 a 12 dias habiles en Colombia.

Agotado

Pago seguro garantizado

Specification:Product Name:Limit SwitchModel:TZ-3113Actuator Type:Roller Plunger TypeRated Voltage:AC-15:5A 250VDC-12:2A 30VContact Configuration:COM-Black,NC-Red,NO-White,E-Green/YellowWire Length:3MBody Size:48.5 x 40 x 16mm(L*W*T)Mounting Hole Size:5.2mm(D)Mounting Hole Distance:25mmThe roller plunger can be operated in a wide range by employing a cam,Dog,cylinder,or auxiliary actuator.Position detection accuracy is .Operating Characteristics:OF max.:1800gf(17.76N)RF min.:450gf(4.41N)PT max.:1.8mmOT min.:3mmMD max.:0.2mmOP:34.3+/-1mmDescription:Double circuit limit switch with build-in double reed mechanism.Aluminium alloy shell,strong and hightly rigid construction.Smooth operation with highter OT.Prewired design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
