nema348N.M. Stepper de circuito cerrado Servo Motor 116mm 6A 2fases & hss86Hybrid driver 70VAC 100VDC de Motor Servo CNC Kit

Precio y disponibilidad de nema348N.M. Stepper de circuito cerrado Servo Motor 116mm 6A 2fases & hss86Hybrid driver 70VAC 100VDC de Motor Servo CNC Kit

$ 1.018.777

0 % de interés sin costos adicionales en 3 cuotas de $ 339.592 , pagando con Addi. Obtén tu cupo

🚚

Envío gratis a todo Colombia

Disponible en todos nuestros productos, sin costos ocultos ni mínimo de compra.

Stock disponible: 3 unidades en existencia.

Tiempo de entrega: Entrega internacional estimada de 9 a 12 dias habiles en Colombia.

🛒 Comprar ahora

Pago seguro garantizado

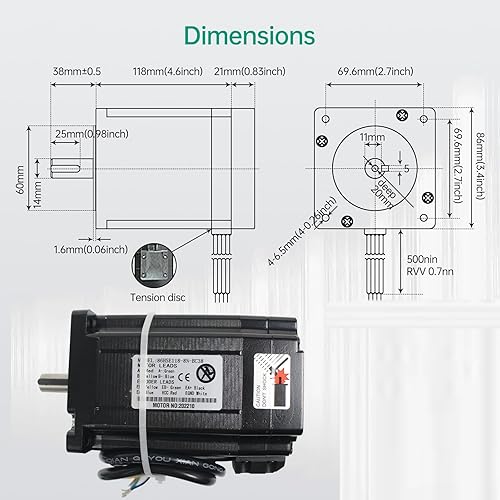

Características ♞【Motor specifications】Holding Torque:8N.m; Current:6A; Peak current:8.0A; Phase:2; Size:86x86x118mm; Step Angle(degrees):1.8 degree; Motor Lead Wire: 4-wire; Encoder lines:1000 ♞【2HSS86 Driver】2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500MΩ; Voltage: AC 24-70V or DC 30-100V input; ♞【Advantages】Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP. The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200microsteps/rev. ♞【More Functions】It supports over-current protection, over-voltage protection, position outside the tolerance protection.The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely. ♞【Widely used】Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on.This motor driver kit fits all types of machine load conditions (including pulley and low stiffness pulley) without adjusting the gain parameters. El número de Modelo (ItemModelNumber) S8Nm Peso 11.38 Libras Dimensiones 10,63 x 10,55 x 7,32 pulgadas Fabricante es Changzhou Rattm Motor Co.,Ltd Destacados ♞【Motor specifications】Holding Torque:8N.m; Current:6A; Peak current:8.0A; Phase:2; Size:86x86x118mm; Step Angle(degrees):1.8 degree; Motor Lead Wire: 4-wire; Encoder lines:1000, ♞【2HSS86 Driver】2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500MΩ; Voltage: AC 24-70V or DC 30-100V input;, ♞【Advantages】Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP. The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200microsteps/rev., ♞【More Functions】It supports over-current protection, over-voltage protection, position outside the tolerance protection.The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely., ♞【Widely used】Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on.This motor driver kit fits all types of machine load conditions (including pulley and low stiffness pulley) without adjusting the gain parameters. La calificación que le dan a nema348N.M. Stepper de circuito cerrado Servo Motor 116mm 6A 2fases & hss86Hybrid driver 70VAC 100VDC de Motor Servo CNC Kit, 9 usuarios es de 3.9 sobre 5 estrellas.
