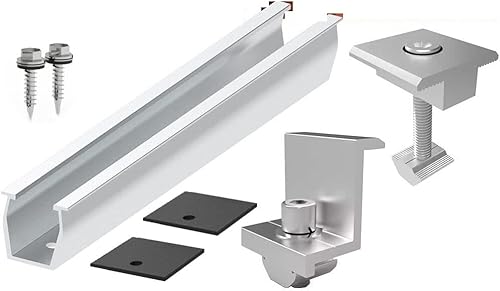

SHENGANG Solar Panel Mount Bracket Rails, Clamp Fastening Module Mount Mounting PV Photovoltaic Solar Power Supplies Trapezoidal Roof (Color 8pcs

Details:*Material: Aluminum alloy*Color:silverStyle: 2x rails + 2x middle clamp, 4x rails + 4x end clipsRail Size: 200mmMiddle clip: for solar panel 30mm, for solar panel 35mmEnd clip: for solar panel 30mm, for solar panel 35mmFeatures: Assembly1. Roof division depending on module dimensions2. Align the first row using a chalk line.3. Place the T20 holder in position, pre-drill with a Ø 5.00 mm sheet metal drill and fasten with 4 blind rivets. Alternatively: fasten with thin sheet metal screws without pre-drilling.4. Place the next rows using a wooden template. After 10 rows check the direction again with a piece of string.Feature:*Application: T20 short rail for trapezoidal sheet PV mounting. on walkable trapezoidal sheet metal roofs with sheet metal outer skin.*Material T20 profiles: aluminum alloy AL6005-T5, 1.00 KN*Requirement - trapezoidal sheet minimum sheet thickness steel 0.5mm / aluminum 1.00mm.*Good static load distribution. This type of installation reduces the suction effect on the outer skin of the roof covering by the weight of the PV system.*No transport of long profile bars - adjusted to the bead spacing of the profile sheets.*The profile sections are pre-punched and covered with sealing tape.Note:Middle clips and end clips purchase the corresponding size set according to the thickness of your solar panelPackage Contents:2x Rails(with accessories Gasket+Screw)+ 2x middle clampOr4x Rails (with accessories Gasket+Screw)+ 4x end clampsNote:1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.2. Please allow slight manual measurement deviation for the data.
