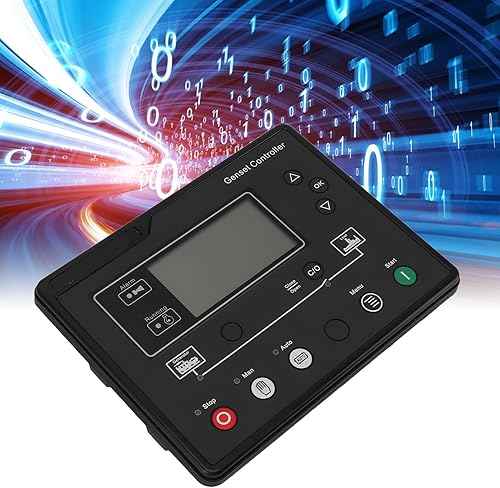

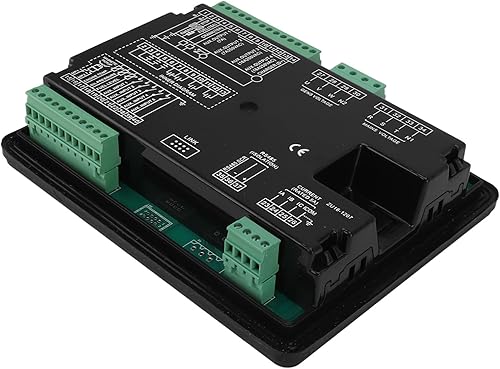

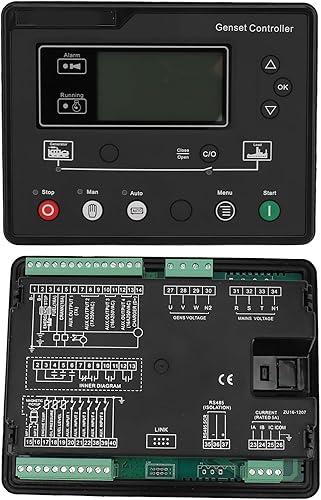

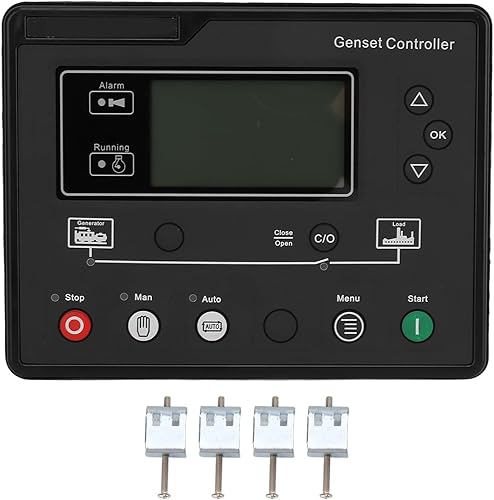

TOPINCN Generator Controller with LCD Display, Generator Set Controller for HQM6110U Gasoline Generator Sets DC 835V Generator Control Panel

Specification:Item Type: HQM6110U Generator ControllerWeight: 717g/25.3ozMaterial: PlasticProduct Size: 20 x 15.5 x 4.7cm/7.87 x 6.1 x 1.85inApplicable Model: For HQM6110UApplication: generator setOperating Voltage: DC8-35V, continuousAlternator Frequency: 50Hz 60HzPower Consumption: <3W(standby ≤2W)Alternator Voltage Input:Three Phase Four Wire 15V AC-360 V AC (ph N)Three Phase Three Wire 30V AC-620 V AC (ph ph)Single Phase Two Wire 15V AC-360 V AC (ph N)Two Phase Three Wire 15V AC-360 V AC (ph N)Speed Sensor Voltage: 1.0V to 24V(RMS)Speed Sensor Frequency: Maximum 10000HzStarting Relay Output: 16A DC28V DC supply outputFuel Relay Output: 16A DC28V DC supply outputProgrammable Relay Output 1:7A DC28V DC supply outputProgrammable Relay Output 2:7A AC250V passive outputProgrammable Relay Output 3:16A AC250V passive outputProgrammable Relay Output 4: 16A AC250V passive outputCurrent Transformer Secondary Current: Rated :5AWorking Conditions: Temperature: -25~70°C Relative humidity: 20~93%RHStorage Conditions: Temperature: -30~80°CProtection Level: IP65 When a waterproof rubber ring is installed between the controller and the control panel.Insulation Strength: Apply AC2.2kV voltage between the AC high voltage terminal and the low voltage terminal, and the leakage current within 1min is not more than 3mA.Stop, Reset Key:In both manual and automatic mode, the operating generator set can be stopped.In the generator alarm state, any shutdown alarm can be reset.In the shutdown mode, press this key for more than 3s to test whether the panel indicator is normal (test light). During the shutdown process, press this key again to stop the machine quickly.How to Use:Connect according to applicable voltage.PackageList:1 x Generator Controller 4 x Accessories
