XTZ-8169 Double Limit Switch with Built in Double Spring Mechanism, Flexible Coil Spring Actuator, for CNC Milling Tool, 3D Printer, 250V 380V

Descripción
Specification:Item Type: Limit SwitchModel: XTZ-8169Actuator Type: Flexible Coil SpringRated Voltage: 10(4)A 250V NO-NO, 6(2)A 380V NC-NCInsulation Voltage UI: 380VHeating Current Ith: 10AProtection : IP66How to Use:It can be used after installation.Package List:2 x Limit Switches8 x Screws8 x Nuts
Características

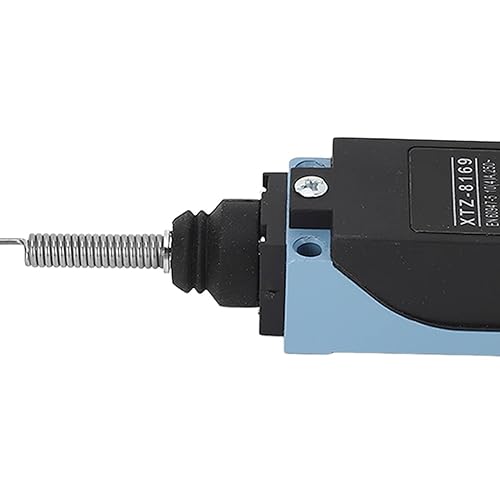

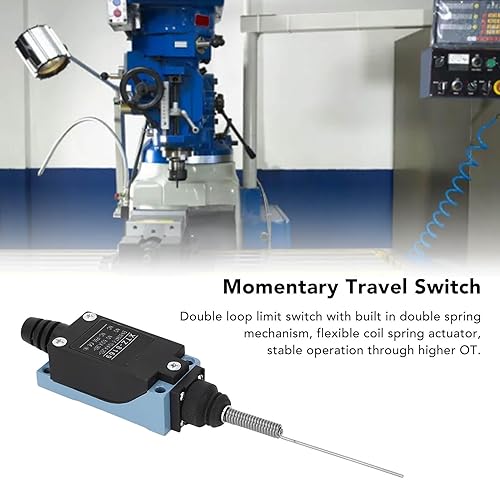

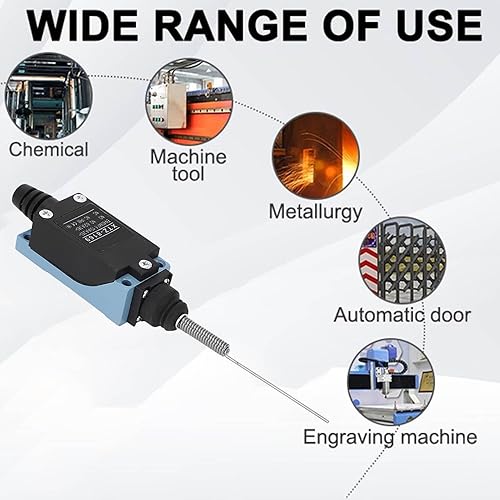

Product Structure: Double limit switch with built in double spring mechanism, flexible coil spring actuator, stable operation through higher OT. Durable Material: The limit switch adopts zinc alloy and dense plastic casing, for high rigidity structure, with brass contacts containing 30% silver. Main Purpose: Used to monitor the position of machine moving components, as well as control and auxiliary circuits for terminal limit protection. Easy Installation: Equipped with screws and nuts, this momentary limit switch is easy to install and disassemble, for stable and reliable structure. Applicable Device: This flexible coil spring limit switch is widely used in CNC machine tool, 3D printer, milling machine, plasma cutting machine, etc.
El número de Modelo (ItemModelNumber)
FTVOGUEt1mw7nbhrs
Peso
1.00 Pounds
Dimensiones
7,09 x 2,36 x 1,18 pulgadas
Fabricante es FTVOGUE
Destacados
Product Structure: Double limit switch with built in double spring mechanism, flexible coil spring actuator, stable operation through higher OT., Durable Material: The limit switch adopts zinc alloy and dense plastic casing, for high rigidity structure, with brass contacts containing 30% silver., Main Purpose: Used to monitor the position of machine moving components, as well as control and auxiliary circuits for terminal limit protection., Easy Installation: Equipped with screws and nuts, this momentary limit switch is easy to install and disassemble, for stable and reliable structure., Applicable Device: This flexible coil spring limit switch is widely used in CNC machine tool, 3D printer, milling machine, plasma cutting machine, etc.
